Linear Bar Grilles

Linear bar Grilles are available in extruded Aluminum construction suitable for sidewall or ceiling applications. Full-length sections to suit the site requirement provides a uniform look, with near perfect alignment between sections. Mitered Corners are optional features. Flanges shall be provided as per requirement. Colour to match the interiors / architect's requirements are available. Louvers are available as an option for proper flow pattern control, as per the details mentioned elsewhere in this catalogue. Custom-made designs can be worked out as per specific project's requirement.

blog-img02

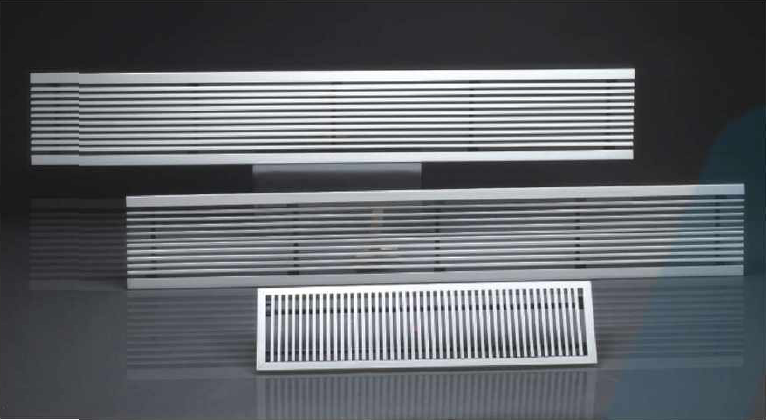

Single Direction Two Way

Deflection 0/15/30/45deg.

Model no. AP01 / LBG - 1

Two Way

Deflection 0/15/30/45deg Combination of any two.

Model no. AP01/LBG - 2

blog-img02

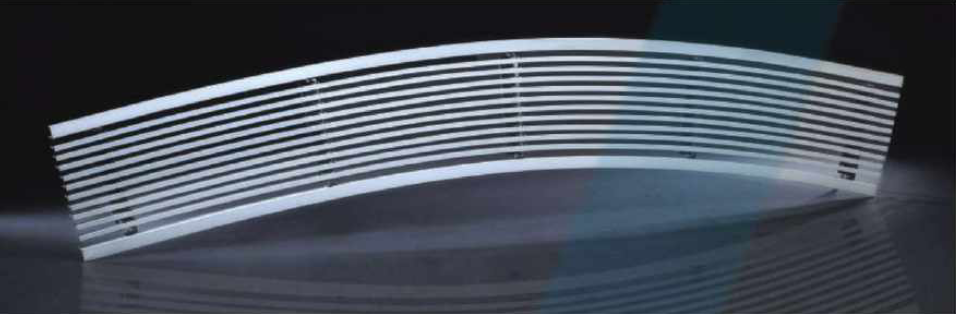

Curved

Deflection 0/15 deg for sidewall mounting.
Deflection 0/15/30deg for ceiling mounting.

Model no. AP01/LBG - 3....

(C or S celling or sidewall)
blog-img02

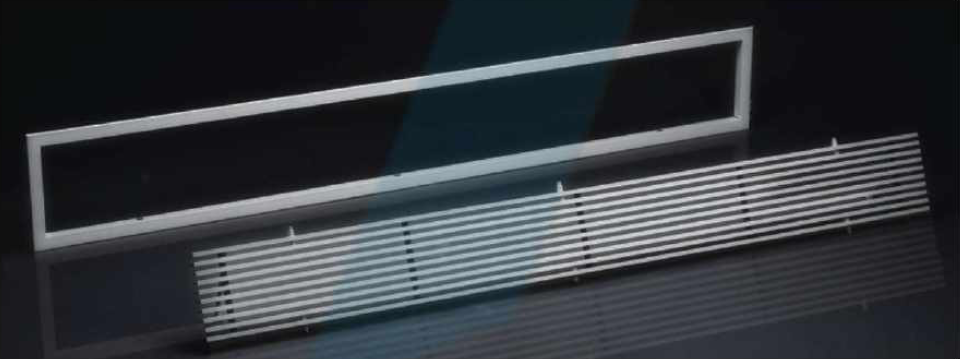

Removable Core

Deflection 0/15/30/45 deg or PF perforated panel

Model no. AP01/LBG - 4

blog-img02

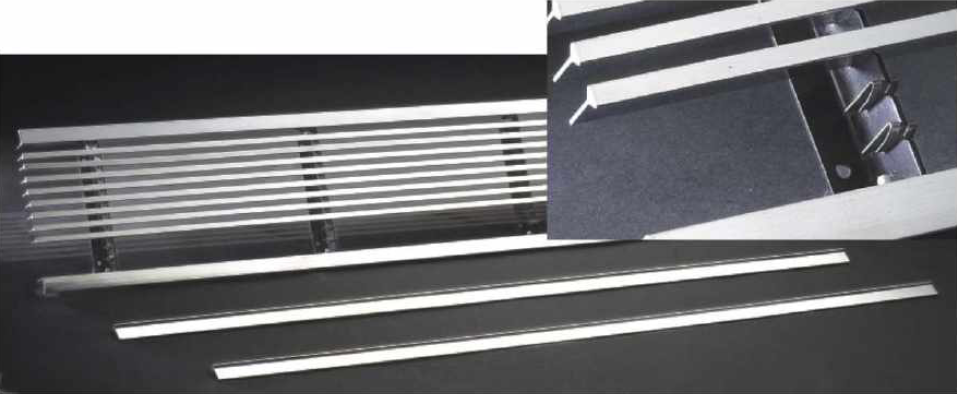

Removable Bars

Deflection 0/15/30 deg

Model no. AP01/LBG - 5
